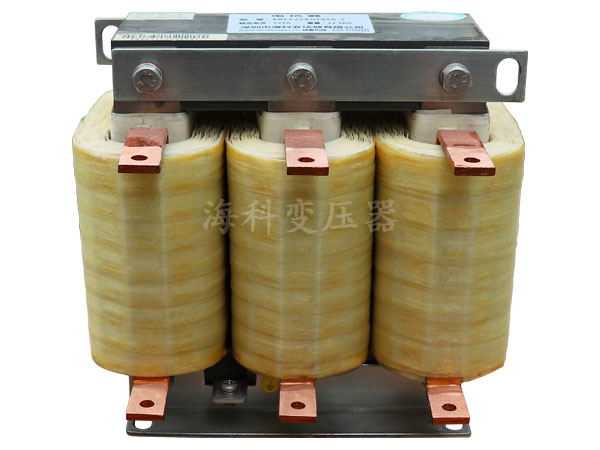

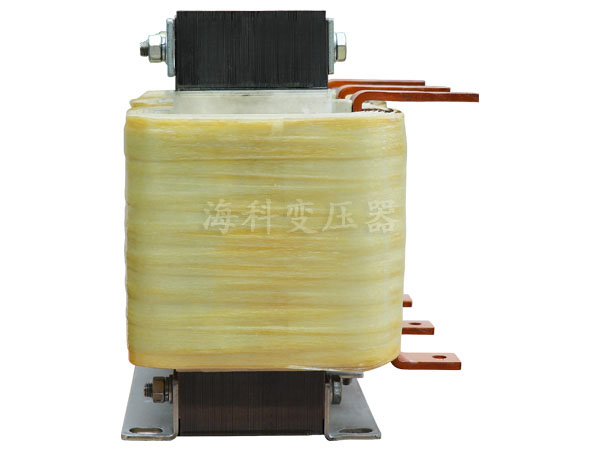

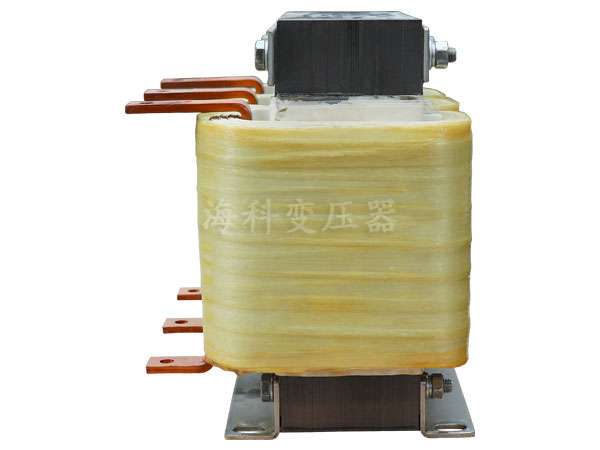

Frequency converter reactor

Technical Parameters
1. Rated working voltage: 400V-1200V/50Hz.
2. Rated working current: 3A to 1500A@40'C
3. Anti-electric strength: iron core-winding 3000VAC/50Hz/5mA/10s without arcing breakdown (factory test)
4. Insulation resistance: 1000VDC insulation resistance>100MV
5. Reactor noise: less than 65dB (1 meter distance from the horizontal point of the reactor)
6. Protection level: IP00
7. Insulation class: above grade F
8. Product implementation standards: 1EC289: 1987 reactor
GB10229-88 reactor (eqvIEC289: 1987)
JB9644-1999 Reactor for semiconductor electric drive

Product description
The inverter special reactor is a wire-wound static induction device specially designed by the design technicians according to the characteristics of the inverter. It can be divided into a DC reactor and an AC reactor according to the type of power supply. According to the different installation methods of the dedicated reactor of the inverter, it can be divided into a series reactor and a shunt reactor. According to the installation position of the special reactor of the inverter, the line reactor and the line reactor can be divided.

Work use
1. Improve the input current waveform caused by capacitive filtering.
2. Reduce and prevent damage to the rectifier bridge and overheating of the capacitor due to the inrush current.
3. Improve the power factor and reduce the DC bus AC pulse.
4. Limit transients in the grid voltage.

Technical Parameters

Reactor type	Adapted power（KW）	Rated current	Inductance（mH）	Absolute rating	Weight（kg）	Size（±0.5mm）
Reactor type	Adapted power（KW）	Rated current	Inductance（mH）	Absolute rating	Weight（kg）	Long	Width	High	Pitch
HK-0003	0.4、0.75	3	28	B	1.5	80	65	110	65*45
HK-0006	1.5、2.2	6	11	B	2.3	80	85	110	65*60
HK-0012	3.7、4.0	12	6.3	B	3.2	100	100	125	80*70
HK-0023	5.5、7.5	23	3.6	H	3.8	110	120	135	85*70
HK-0033	11、15	33	2.0	H	4.3	110	120	135	85*70
HK-0040	18.5	40	1.3	H	4.3	110	120	135	85*70
HK-0050	22	50	1.08	H	5.5	120	135	145	95*85
HK-0065	30	65	0.8	H	7.2	138	150	170	110*85
HK-0078	37	78	0.7	H	7.5	138	150	170	110*85
HK-0095	45	95	0.54	H	7.8	138	150	170	111*85
HK-0115	55	115	0.45	H	9.2	155	160	195	125*90
HK-0160	75	160	0.36	H	10	165	130	215	100*95
HK-0180	90	180	0.33	H	20	210	130	215	100*95
HK-0250	110、132	250	0.26	F、H	23	210	150	255	175*115
HK-0340	160	340	0.17	F、H	23	210	150	255	175*115
HK-0460	185、220	460	0.09	F、H	28	220	150	280	190*115
HK-0650	300	650	0.072	F、H	33	235	160	280	205*125
