Product description

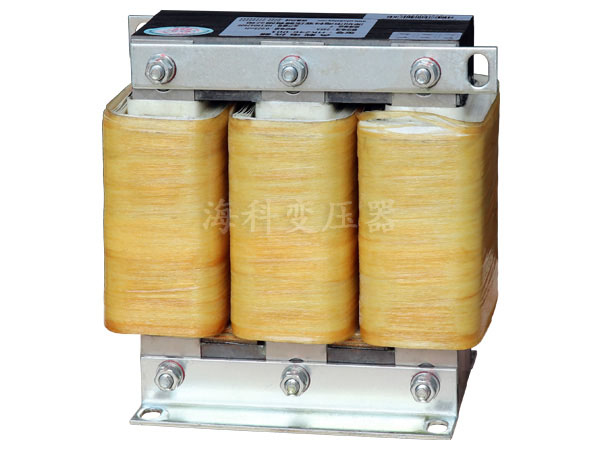

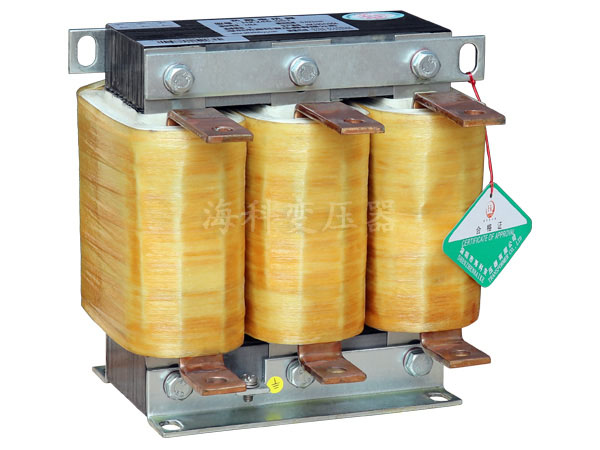

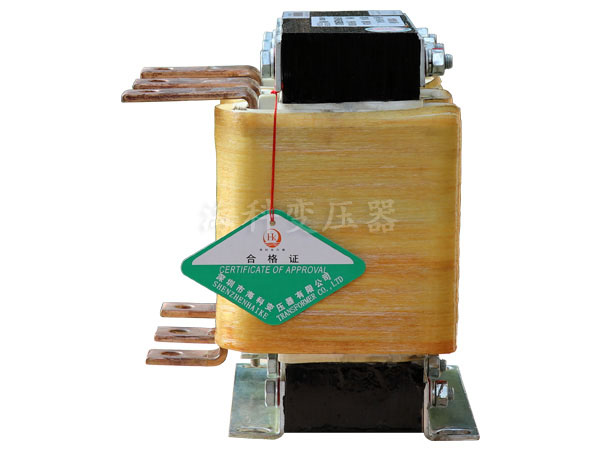

The load reactor is matched with a high-power load dry resistance/inductive integrated load cabinet. By adjusting the capacity of the inductive load and the resistive load, the output power and load capacity of the marine generator set can be accurately detected. It can assist shipyard to carry out whole ship acceptance, mooring test, ship line test, load test, static pressure regulation test, characteristic test, speed regulation characteristic test, overload protection test, reverse power and reverse current protection test, and parallel vehicle test.
Features
The load reactor is made of high silicon high quality oriented silicon steel sheet;
All insulation materials and electromagnetic wires are F/H grade;
According to the requirements of national standards, the process has small loss, strong insulation, good heat dissipation, corrosion resistance, moisture resistance, strong shock resistance, safety and reliability.
Technical Parameters
| Rated Capacity（Kvar） |
System voltage（KV） |
Rated frequency（HZ） |
Rated current（A） |
Rated inductance（A） |
Dimensions (L * W * H) |
| HK-1 |
0.38 |
50 |
1.515 |
462 |
250*150*180 |
| HK-2 |
0.38 |
50 |
3.03 |
231 |
250*150*200 |
| HK-3 |
0.38 |
50 |
4.54 |
154 |
300*230*300 |
| HK-5 |
0.38 |
50 |
7.58 |
92.4 |
320*260*400 |
| HK-8 |
0.38 |
50 |
12.12 |
57.75 |
400*260*450 |
| HK-10 |
0.38 |
50 |
15.2 |
46.2 |
400*280*500 |
| HK-20 |
0.38 |
50 |
30.3 |
23.1 |
500*300*550 |
| HK-30 |
0.38 |
50 |
45.5 |
15.4 |
500*300*600 |
| HK-50 |
0.38 |
50 |
75.8 |
9.25 |
660*315*750 |
| HK-100 |
0.38 |
50 |
152 |
4.62 |
700*350*750 |
| HK-200 |
0.38 |
50 |
303 |
2.31 |
750*400*800 |
| HK-300 |
0.38 |
50 |
454 |
1.54 |
800*450*800 |
