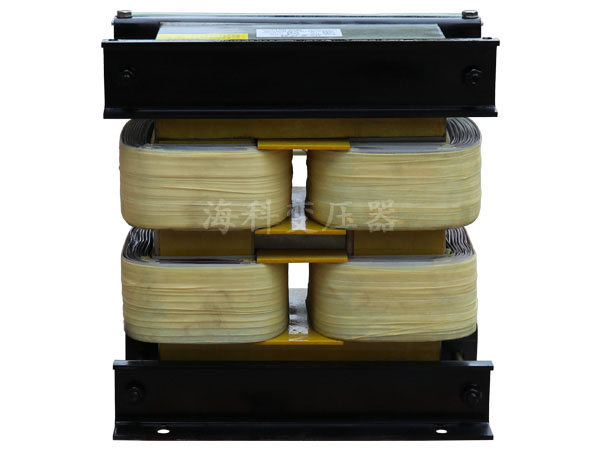

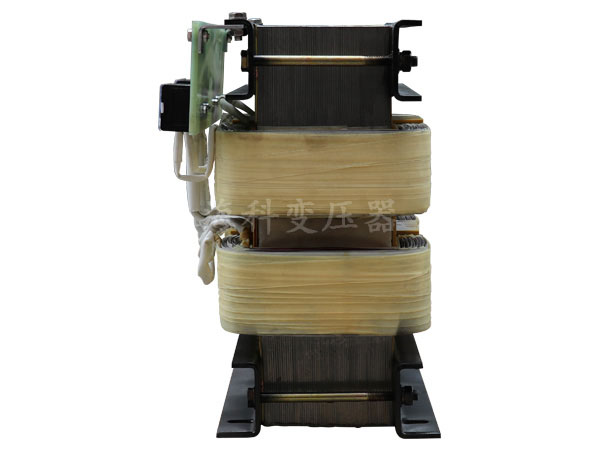

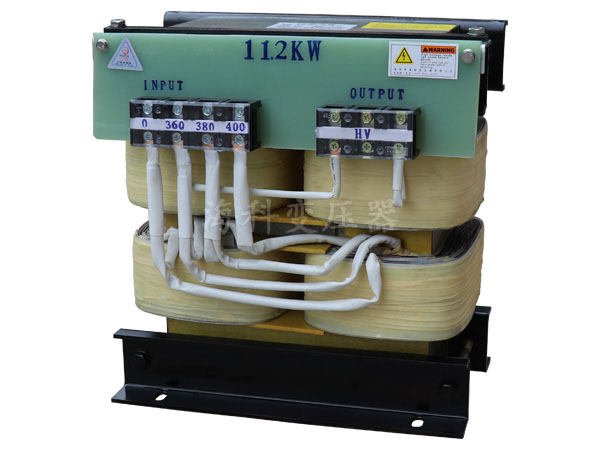

UV transformer
Material: Copper
Line package: 2-4
Power: 1KW-20KW
Input voltage: 380V
Output voltage: 950V
Output current: 6.5A
Adaptation capacitor: 10+3+2uF
Insulation class: Class F, Class H
Product Name:UV Transformer
Scope of application: It is used for rapid curing of UV coating on the surface of printing, wood products, rubber and plastic products, metal products, electronic products and various paint production lines.

Product function
This product uses the principle of leakage magnetic boosting, a dry type transformer used in special occasions. According to the principle of electromagnetic induction, it is a lighting power source designed for UV light source in UV glazing, UV curing, PS plate printing machine, etc. according to the input winding induction output winding. UV transformers are available in vertical, horizontal, power from 1KW to 20KW. UV transformers are power supplies for use with UV lamps and UV capacitors. It can also be used for imported UV light sources.

Features
It adopts imported silicon steel sheet and scientific design advanced technology to produce stable performance, fast start, low noise, low heat, energy consumption and energy saving. It is an ideal power source for the curing industry. Widely used in iron can printing, paper glazing, printing flexible packaging, color printing silk screen, electronics, plastics, furniture, wood flooring decorative materials and other industries.
