Product Name: Strong UV High Pressure Mercury Lamp / UV Lamp
Color: white
Lamp holder: ceramic
Phase number: single phase
Tube pressure: 135V-2000V
Power: 1KW-20KW
Current: 5A-12.5A
Length: 230MM-1807MM
Pole distance: 190MM-1651MM
Warranty: 800 hours
Note: The length of the following lamps is universal length. For special customization, please contact customer service.

Product introduction

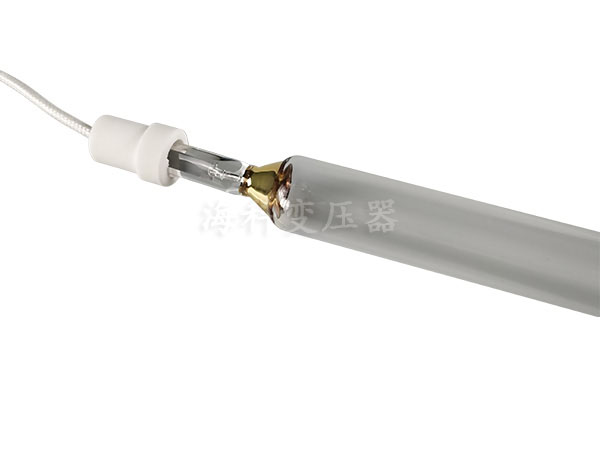

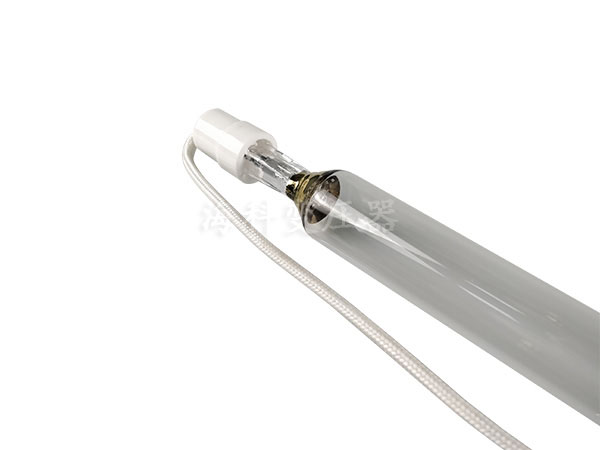

The strong ultraviolet high-pressure mercury lamp (referred to as the UV lamp) is made of high-quality imported pure quartz tube, which makes the ultraviolet energy high and a large amount of penetration. The arc length is 5cm-300cm. The line power is 30 W/cm-240 W/cm. The lamp has a spectral effective range between 350 nm and 450 nm. The main peak is 365 nm. There are dozens of varieties, hundreds of specifications, power can be produced from 100W-25KW. The life of a UV lamp generally refers to the space in which it can maintain sufficient energy to operate, during which its energy gradually decays until it is below the acceptable range. In general, standard UV lamps are capable of emitting enough energy for between 800 hours and 1000 hours.

Application range
UV curing is widely used in plastic coating, hardware coating, bamboo flooring, furniture, cabinets, decorative materials, brushes, tin cans, signs, circuit boards, optical discs, etc., as well as semiconductors, electronic components, LCDs, etc. An ideal source for bonding cure.
