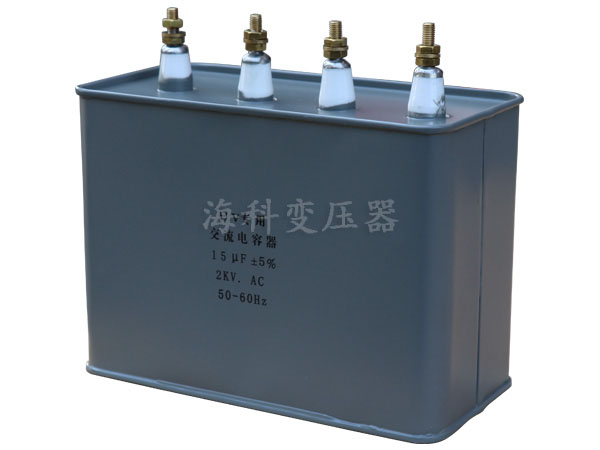

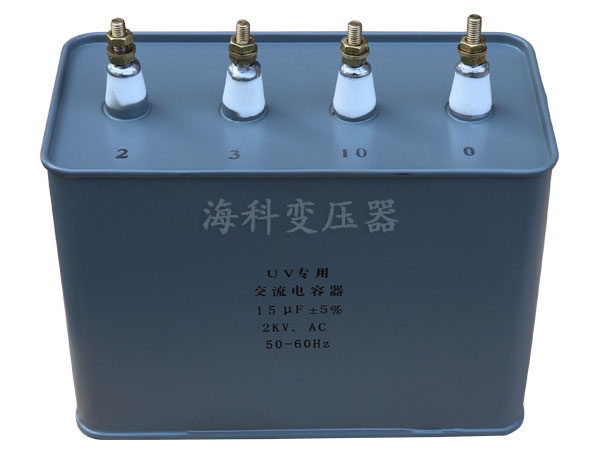

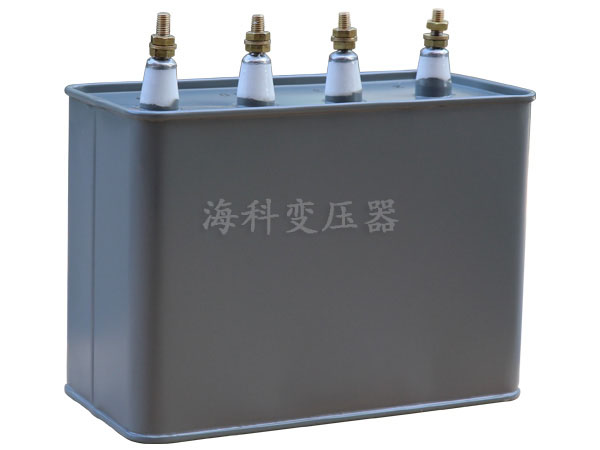

UV capacitor

Product Name: AC Capacitor
Port: 2-6
Power: 3KW~30KW
Voltage: 2000V
Frequency: 50HZ-60HZ
Size: 21*11*19(cm)
Warranty: One year

Product introduction
UV capacitors are used together with leakage magnetic transformers. UV capacitors are specially developed for special light sources and special lamps. The power is compensated during operation. It is generally used in conjunction with the transformer. The function is to compensate the power and balance the current to keep the UV lamp in a stable working state. Its performance is stable, so that the lamp can work normally under stable working conditions. Widely used in high frequency, DC, AC and pulse balance circuits. The UV capacitor is a light source product used together with a UV transformer and a UV lamp. The capacitor is a combination type, which is easy to install, has a wide power range, and can be customized according to user requirements.

Material and characteristics
Special capacitors for UV lamps, which act as compensation power and balancing current, are an indispensable part of UV lamp operation. Good quality, reasonable price, specifications from 1UF-300UF, withstand voltage from 1000V-5000V. Widely used in high frequency, DC, AC and pulse balance circuits. Capacitors are used together with lamps and transformers as light source products. It adopts combination type, easy to install, reliable performance, good moisture resistance and long service life.



Technical Parameters
Rated voltage kV~ Nominal capacity μF Shell number Rated voltage kV~ Nominal capacity μF Shell number
HK-2 10+3+2 15 2 3.5 6+2+1.6 9.6 8
10+3+3 16 2 5+3+2 10 8
10+5+3 18 7 6+3+2 11 8
10+6+4 20 7 6+4+2 12 8
15+4+3 22 7 7+5+1 13 8
10+8+5 23 7 10+3+2 15 8
12+6+6 24 7 10+5+3 18 10
15+10+5 30 8 9+5+4 18 10
HK-2.5 6+3+3 12 8 4 2.2+1+1 4.2 8
8+4+3 15 8 2.2+1.4 4.6 8
10+3+2 15 8 3+1+1 5 8
8+7+1 16 8 3.3+2.2+1.1 6.6 8
8+8+2 18 8 5+3+1 9 8
10+5+3 18 8 5+3+2 10 8
15+3+2 20 8 5.7+1.7+1.4 8.8 8
HK-3 5+3+1 9 7 6+2+1.6 9.6 8
5+3+2 10 7 7+5+1 13 9
8+3+2 13 7 10+3+2 15 11
8+5+2 15 8 8+5+2 15 11
8+8+2 18 8 4.5 2+1.5+1 4.5 7
9+5+4 18 8 4+3+1.5 8.5 8
10+3+2 15 8 5+3+2 10 8
10+2+2 14 8   3+1+1 5 8
10+5+3 18 8 4+3+1.5 8.5 10
HK-3.5 5+2+1.5 8.5 8 5+2+1 8 10
5+3+1 9 8 10+3+2 15 11
