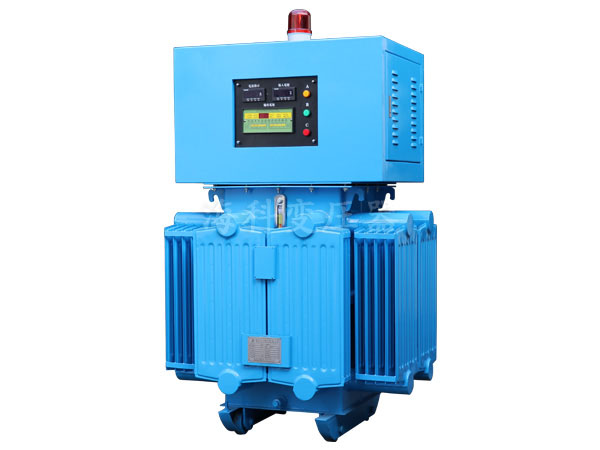

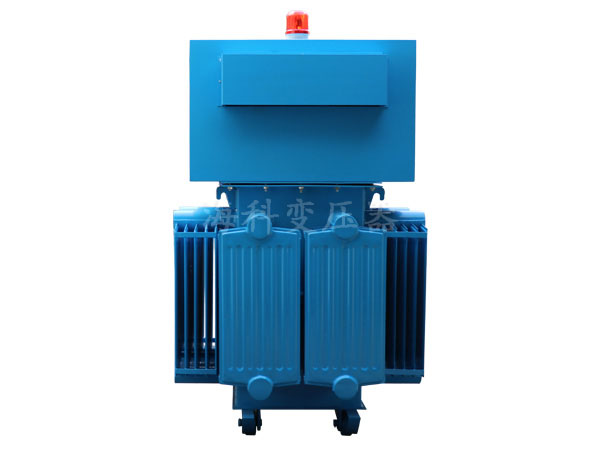

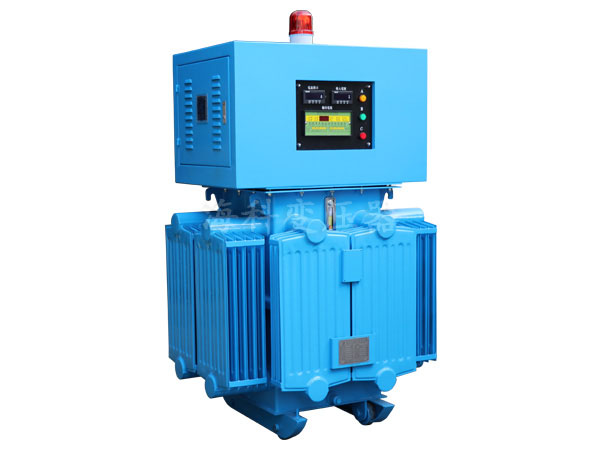

Oil regulator

Product description
TDA TSA high-pressure large-capacity induction voltage regulator is developed for the adjustment of national industrial structure, adapting to the market demand of large-scale, industrialized and intensive large-scale production. The product has large capacity, low loss and high efficiency. The voltage regulation waveform is good. The pressure regulation range is large, no contact voltage regulation, long-term reliable operation. It does not need to go through the distribution transformer equipment, can directly input high voltage. High voltage output. It greatly reduces the capital investment of the project. The trouble of self-consumption and installation operation. Today's high-speed and convenient information age. Widely used in large-scale motors, water pump testing, glass manufacturing, chemical systems, rectifier equipment, plastic machinery, railway signals, electric furnaces, textile printing and dyeing, national defense engineering research, etc. It is ideal for pressure regulation and temperature regulation. Large-scale AC power supply with speed regulation, power adjustment and dimming.

Features
1. no contact adjustment, long service life;
2. Suitable for loads of various natures;
3, strong overload capability;
The oil-immersed regulator operates reliably and is easy to use and maintain. The working principle and structure of the inductive regulator are similar to those of the stalled asynchronous motor, and the energy conversion relationship is similar to an autotransformer. By means of a transmission mechanism such as a hand wheel or a servo motor, an angular displacement between the stator and the rotor is generated, thereby changing the phase and amplitude relationship of the induced electromotive force between the stator winding and the rotor winding, so as to achieve the purpose of adjusting the output voltage. Inductive voltage regulators are available in three-phase and single-phase versions.

Product main specifications
Serial number Model Capacity
(KVA)
Phase Frequency
(HZ)
Input voltage
(V)
Output voltage range
(V)
Rated output current
(A)
No-load current
(A)
Total loss
(75°)(W)
1 HKTSA-630 630 3 50 380 0~650 560 95 16000
2 HKTSA-630/6 630 3 50 6000 0~6300 57.7 8 17000
3 HKTSA-630/10 630 3 50 10000 0~10500 34.6 5 18000
4 HKTSA-800 800 3 50 380 0~650 711 115 19000
5 HKTSA-800/6 800 3 50 6000 0~6300 73.3 9.8 20000
6 HKTSA-800/10 800 3 50 10000 0~10500 44 6.2 21200
7 HKTSA-1000 1000 3 50 380 0~650 888 140 22400
8 HKTSA-1000/6 1000 3 50 6000 0~6300 91.6 11.8 23600
9 HKTSA-1000/10 1000 3 50 10000 0~10500 55 7.5 25000
10 HKTSA-1250 1250 3 50 380 0~650 1110 175 26500
11 HKTSA-1250/6 1250 3 50 6000 0~63000 115 14.5 28000
12 HKTSA-1250/10 1250 3 50 10000 0~10500 68.7 9.3 30000
13 HKTSA-1600 1600 3 50 380 0~650 1421 212 31500
14 HKTSA-1600/6 1600 3 50 6000 0~6300 147 18 33500
15 HKTSA-1600/10 1600 3 50 10000 0~10500 88 11.2 35500
16 HKTSA-2000 2000 3 50 380 0~380 1776 257 37500
17 HKTSA-2000/6 2000 3 50 6000 0~6300 183 21.7 39500
18 HKTSA-2000/10 2000 3 50 10000 0~10500 110 13.8 41800
19 HKTSA-2500 2500 3 50 380 0~380 2220 315 45000
20 HKTSA-2500/6 2500 3 50 6000 0~6300 229 26.6 47000
21 HKTSA-2500/10 2500 3 50 10000 0~10500 137 16.9 50000
22 HKTSA-3000 3000 3 50 380 0~380 2665 368 53000
23 HKTSA-3000/6 3000 3 50 6000 0~6300 275 31 56000
24 HKTSA-3000/10 3000 3 50 10000 0~10500 165 20 59000
