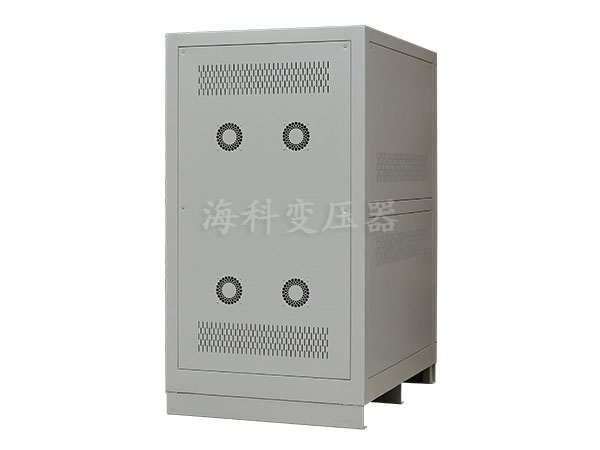

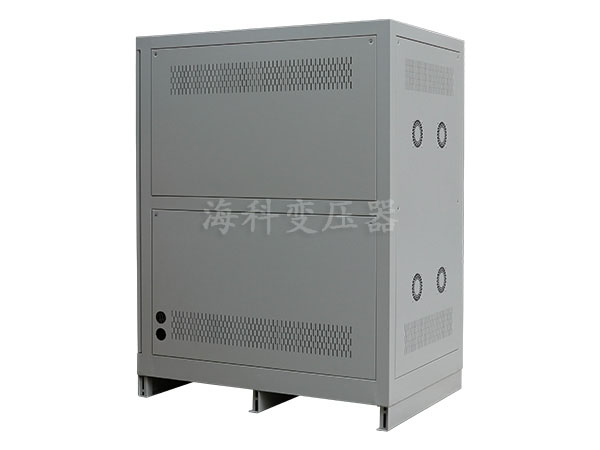

SBW fully automatic compensation regulator

Product description
SBW, DBW series single. The three-phase fully automatic compensation regulator is designed and manufactured by international advanced compensation technology. When the grid voltage fluctuation or load current changes, the output voltage can be kept stable to ensure the normal operation of the power equipment. The product has the advantages of large capacity, high efficiency, no waveform distortion, stable voltage regulation, etc. It can be applied to a wide load surface and can withstand instantaneous overload. It can work continuously for a long time, manual, automatic switching, with over-voltage and other protection functions, small size and weight. Light, easy to use and reliable operation.

Scope of application
It is suitable for small factories, large and medium-sized industrial and mining enterprises, power supply, and can be widely used in industrial and mining enterprises, oil fields, railways, construction sites, schools, hospitals, hotels, scientific research and other departments of precision machine tools, precision instruments, test equipment, Elevator, imported electromechanical equipment and production line equipment voltage regulation, also applies to low-voltage power grid low-voltage, large fluctuations of low-voltage power grid end users.
Technical Parameters
Model HK-SBW20kVA~1000kVA(Three-phase) HK-DBW10kVA~100kVA(Single-phase)
Input voltage range 304V~456V 176~264V
The output voltage 380V±(1-5%)Can be set
380V ±(1-5%)settable
220V±(1-5%)Can be set
220V±(1-5%)Settable
Voltage regulation accuracy ±(1-5%)Can be set
±(1-5%)settable
Insulation resistance ≥2MΩ
Withstand voltage 2000V1 minNo breakdown or flashover
2000V1 min no disruption or fiasges phanomenon
1500V1minNo breakdown or flashover
1500V1 min no disruption or fiasges phanomenon
Frequency 50Hz/60Hz
Response time ≤1.5S(When the input voltage changes by 10%)
Effectiveness ≥98%
Waveform distortion <1%
Ambient temperature -5℃~+40℃
Relative humidity <90%


Dimensions and weight (for reference only)
Model Package dimensions(cm) Output Power Weight(kg)
HKSBW-50KVA 80*62*135 50KVA 250
HKSBW-60KVA 80*62*135 60KVA 350
HKSBW-100KVA 85*62*150 100KVA 420
HKSBW-150KVA 100*72*170 150KVA 550
HKSBW-180KVA 100*72*170 180KVA 570
HKSBW-200KVA 100*72*200 200KVA 630
HKSBW-225KVA 110*80*180 225KVA 660
HKSBW-250KVA 110*80*200 250KVA 700
HKSBW-300KVA 110*80*210 300KVA 740
HKSBW-320KVA 110*80*210 320KVA 760
HKSBW-400KVA 100*80*210/2 cabinet 400KVA 1100
HKSBW-500KVA 100*80*210/2 cabinet 500KVA 1500
HKSBW-600KVA 100*80*210/2 cabinet 600KVA 2200
HKSBW-800KVA 85*100*220/3 cabinet 800KVA 2800
HKSBW-1000KVA 85*100*220/3 cabinet 1000KVA 3500
HKSBW-1200KVA 85*100*220/3 cabinet 1200KVA 4100
HKSBW-1600KVA 110*110*220/4 cabinet 1600KVA 5560
HKSBW-2000KVA 110*110*220/4 cabinet 2000KVA 7100
