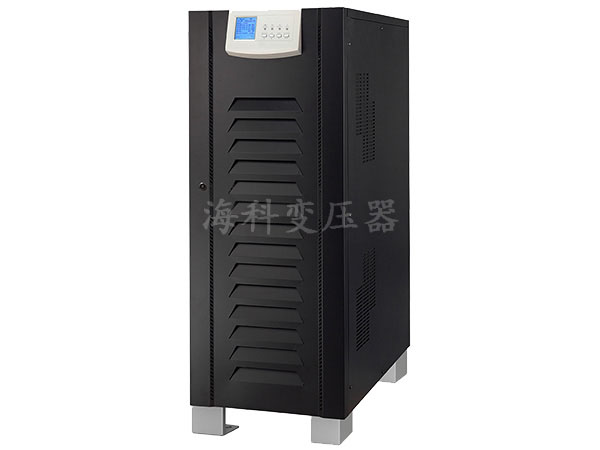

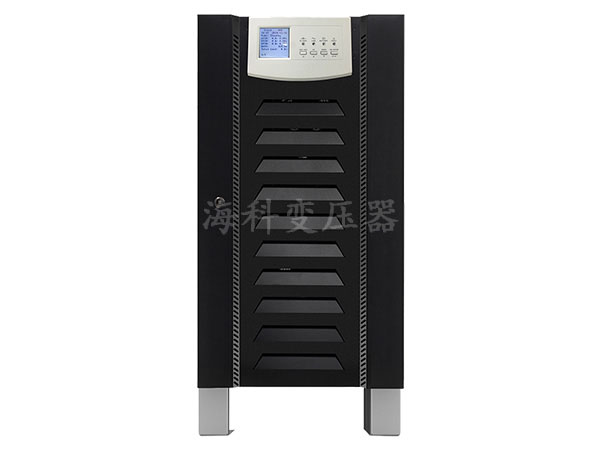

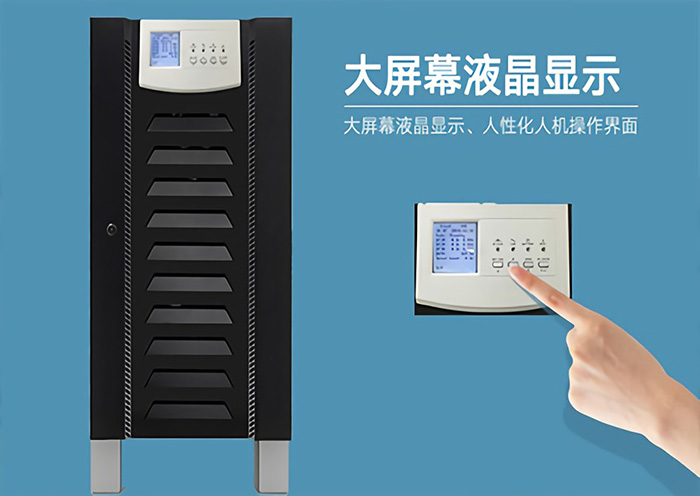

Features

1. Digital control realizes online double conversion
2. built-in output isolation transformer
3. Industrial grade design is applied to various harsh conditions
4. front maintenance design
5. adapt to various load conditions
6. can be up to four units of operation
7. rich communication interface
8. support input phase error and no N line rectifier

Technical Parameters

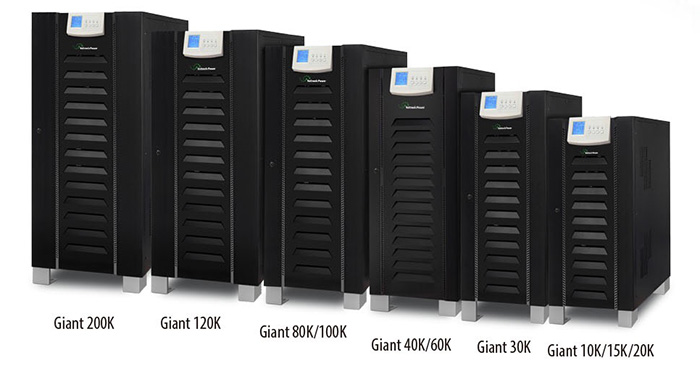

Model

Giant 10K

Giant 15K

Giant 20K

Giant 30K

Giant 40K

Giant 60K

Giant 80K

Giant 100K

Giant 120K

Giant 160K

Giant 200K

Capacity

10 KVA/ 8KW

15 KVA/ 12KW

20 KVA/ 16KW

30 KVA/ 24KW

40 KVA/ 32KW

60 KVA/ 48KW

80 KVA/ 64KW

100 KVA/ 80KW

120 KVA/ 96KW

160 KVA/ 128KW

200 KVA/ 160KW

Input

Rated voltage

3*380VAC/400VAC(3 phase + N line)

Voltage range

285VAC~475VAC

Frequency Range

50/60 Hz ±10%

Inverter

Input voltage

3*380VAC/400VAC(3 phase + N line)

Voltage stability

Steady state: ±1% typical Transient: ±5% typical value (load change 100-0-100%)

Frequency synchronization range

50/60Hz synchronization ±1%; mains loss ±0.1Hz

Frequency tracking rate

±1Hz/s

Output waveform

Sine wave

Total harmonic（THDv）

<2% (linear load); <5% (non-linear load)

Phase imbalance

120° ± 1% (balanced load); 120 ° ± 2% (50% unbalanced load)

Dynamic adjustment time

<60Milliseconds recovered to 90% of rated value

Overload capability

110%~150% can run for 10 minutes~1 minutes; 150%~>160% can run for 1 minute~200ms; >160% can run for 200ms

Crest factor

3:1

Load power factor range

0.6~1(capacitive or emotional)

Unbalanced output voltage @100% unbalanced load

<1%

Current limit

Extremely heavy overload; short circuit: voltage rms limit; inrush current: peak voltage limit

Bypass

Types of

Static switch

Voltage

3*380VAC/400VAC(3 phase + N line)

Frequency

50/60HZ

Control method

Microprocessor control

Inverter to bypass switching time

Synchronous mode: 0 ms · Non-synchronous mode: 10 ms

Overload capability

150%~180% can last from 1 hour to 30 seconds; 180%~200% can last from 30 seconds to 200 milliseconds; 200% can last for 200 milliseconds

Switch to bypass

Overload 160%: switch immediately

Switch back to inverter

Automatically switch after the alarm is cleared

Maintenance bypass

Types of

Uninterrupted

Voltage

3*400V(3 phase + N line)

Frequency

50/60 Hz

Overall performance

Online mode

89%

90%

91%

92%

Battery mode

90%

91%

92%

93%

Battery&Charging

Number of battery sections (12V) and quantity

29/30/31/32(adjustable)

Rated voltage

384VDC (based on 32 adjustable)

Charging method

CC/CV

Recharging current

Preset 10A, maximum = capacity / battery voltage

Preset 10A, maximum 40A

Type of batteryd

Sealed lead acid battery, nickel chrome battery

Physical properties

Size D*W*H（mm）

656*405*817

656*405*941

821*432*1159

975*554*1286

975*554*1326

1051*705*1376

Net weight (kg)

118

120

415

193

278

365

471

573

650

785

840
